$46.81
Zeb-CU5013â
$46.81
The Story
Features

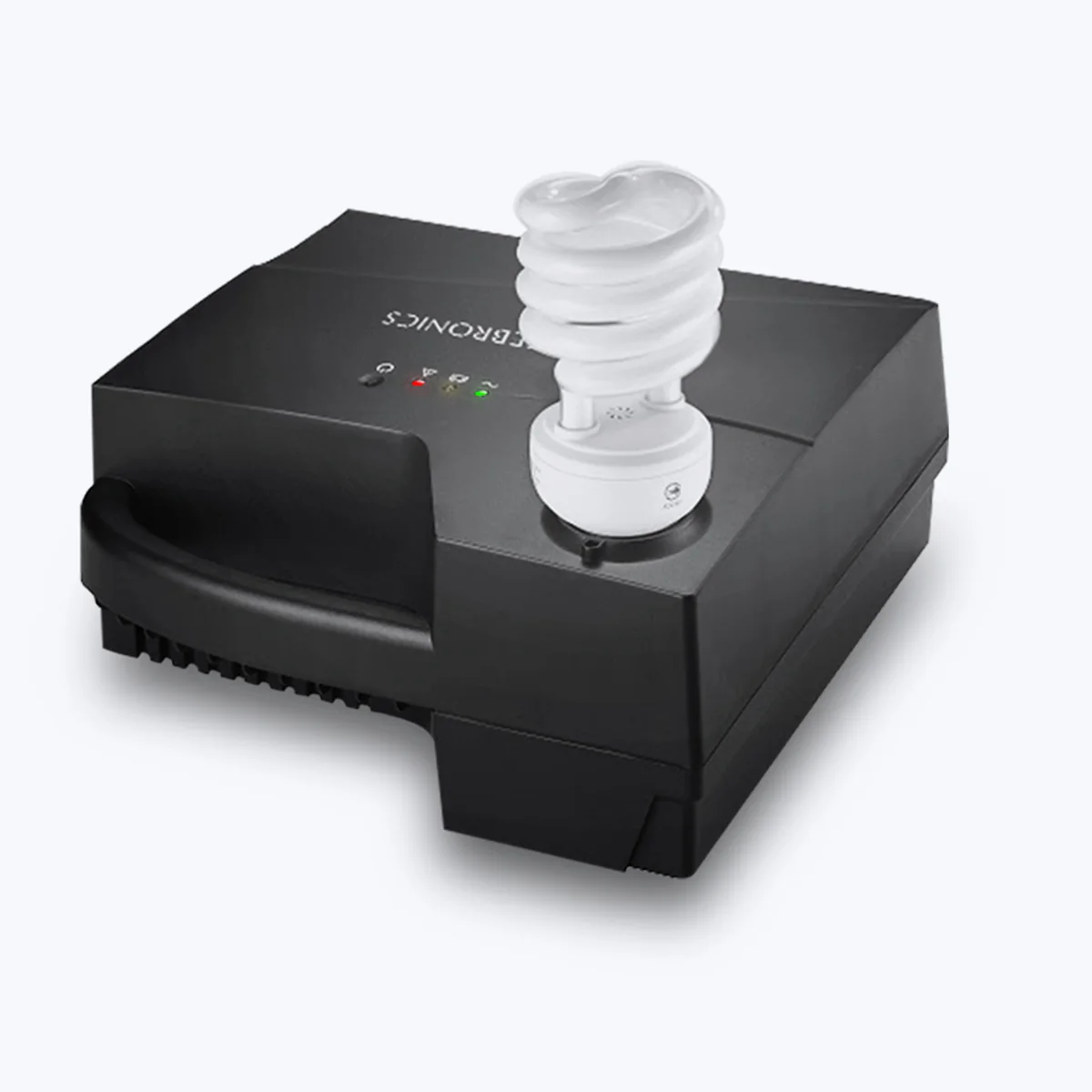

| CFL bulb holder | |
| Auto restart while AC is recovering | |
| Overload Indication | |
| Short Circuit Protection | |
| Wide Input Range | |
| Microcontroller Based | |
| 2 pin DC Socket (3 nos) | |
| Country of Origin : China |
Specifications
| Capacity | 50VA/40W | |
| Input | ||
| Nominal Voltage | 220-240 VAC | |
| Voltage Range | 100-300 VAC | |
| Frequency | 50/60 Hz (Auto Sensing) | |
| Plug Type | 2 Pin Plug | |
| Output | ||
| Voltage Range (AC mode) | 230V DC ± 10 % | |
| Voltage Range (Batt. Mode) | 160-230VDC ± 10 % | |
| Frequency Range (Batt. Mode) | 50/60Hz ±1% | |
| Transfer Time | 100ms | |
| Waveform (Battery mode) | DC Output | |
| No. of Output Sockets | 3 | |
| Protections | Overload, Short Circuit, Over Discharge & Over Charge | |
| Battery | ||
| Battery Type | 12V 7Ah x 1no | |
| Charging Current | 1A | |
| Recharge Time | 6 hours to charge 90% (after complete discharge) | |
| Indicators | ||
| No. Of LEDs | 3 LEDs | |
| AC Mode | Green LED | |
| Battery Mode | Yellow LED Light Continuous ON | |
| Low Battery | Yellow LED Light On/Off every 1 second | |
| Overload | Red LED Light On/Off every 0.5 second | |
| Fault | Red LED Continuous ON | |
| Physical details | ||
| Dimension (W x D x H) | 200 x 87 x 209 mm | |
| Net Weight | 2.7 kg | |
| Package Dimension (W x D x H) | 266 x 127 x 275 mm | |
| Environmental factors | ||
| Operational Temperature | 0-40â°C | |
| Noise Level | < 40dB | |
